1.27mm pitch single row straight pin header 1*40Pin

1.27mm pitch single row straight pin header 1*40Pin

Product details
Pitch:  1.27mm
Gender:  Header
Number of contacts:  01-50 pin
Mount type:  Through hole
Number of Rows:  Single row
Elevated:  No
Orientation:  Straight
Square Pin Diameter:  0.30mm
Insulator colour:  Black

Current Rating:  1 Amp
Insulator Resistance: 1000 MΩ min
Contact Resistance:  20 MΩ max
Dielectric Withstanding:  AC 300V
Operating Temp.: -40°C to +105°C
Contact Material: Copper Alloy

Soldering Process:
PA6T(Standard)
IR Reflow:  260°C for 10 seconds
Wave:  230°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds
PA9T/LCP(Option)
IR Reflow:  260°C for 10 seconds
Wave:  250°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds

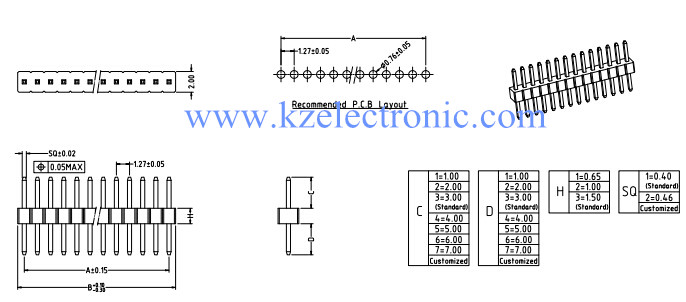

Drawing:

1.27mm pitch single row straight pin header 1*40Pin Images
