Pitch 2.54mm female header with bump 180° type PCB connector

Pitch 2.54mm female header with bump 180° type PCB connector

Product details
Pitch:  2.54mm
Gender: Socket
Number of contacts:  04-80 pin
Mount type: Though hole
Number of Rows:  Dual row
Elevated:  No
Orientation: Straight
Square Pin Diameter:  0.60mm
Insulator colour:  Black

Current Rating: 3 Amp
Insulator Resistance: 1000 MΩ min
Contact Resistance:  20 MΩ max
Dielectric Withstanding:  AC 500V
Operating Temp.: -40℃ to +105℃
Contact Material: Copper Alloy

Soldering Process:
PA6T(Standard)
IR Reflow:  260℃ for 10 seconds
Wave:  230℃ for 5-10 seconds
Manual Solder: 350℃ for 3-5 seconds
PBT(OPTION)
Manual Solder: 350℃ for 3-5 seconds
(Not suitable for HI-TEMP process)
WAVE:230℃ for 5-10 seconds
PA9T/LCP(Option)
IR Reflow:  260℃ for 10 seconds
Wave:  250℃ for 5-10 seconds
Manual Solder: 350℃ for 3-5 seconds

Pitch 2.54mm female header with bump 180° type PCB connector

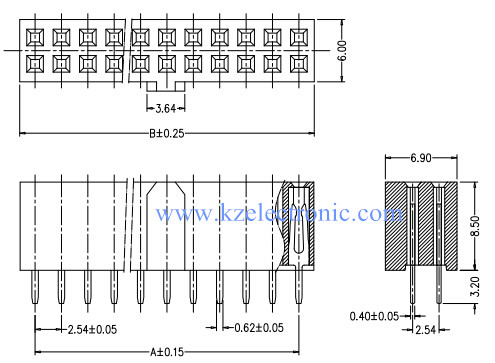

Drawing

Pitch 2.54mm female header with bump 180° type PCB connector Images
