Pitch: 2.0mm
Gender:  Header
Number of contacts: 08-64 pin
Mount type:  Through hole
Number of Rows:  Dual row
Elevated:  No
Orientation: Straight / Right angle
Square Pin Diameter:  0.50mm
Insulator colour:  Black

Current Rating: 3 Amp
Insulator Resistance: 1000 MΩ min
Contact Resistance:  20 MΩ max
Dielectric Withstanding:  AC 500V
Operating Temp.: -40°C to +105°C
Contact Material: Copper Alloy

Soldering Process:
PA6T(Standard)
IR Reflow:  260°C for 10 seconds
Wave:  230°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds
PBT(OPTION)
Manual Solder: 350°C for 3-5 seconds
(Not suitable for HI-TEMP process)
WAVE:230°C for 5-10 seconds
PA9T/LCP(Option)
IR Reflow:  260°C for 10 seconds
Wave:  250°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds

2.0mm male connector PCB box header right angle connector

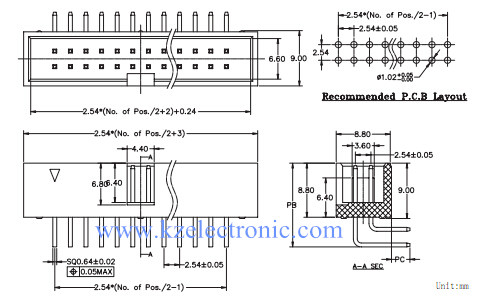

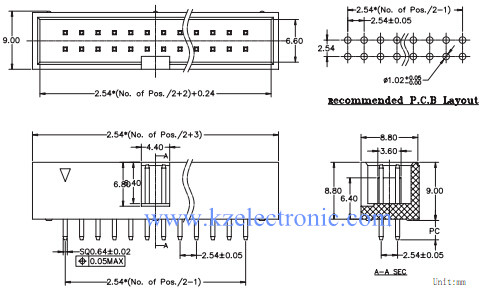

Drawing for reference

straight box header connector male connector

Right angle box header male connector
